Thank you for installing Tip-Toggled Overlays for Joystick!
■ Setup
In order to set up your images and get your URL's for your overlays, type "!toggle config" or "!toggle c" into your publisher view, like so:
!toggle config
The link provided will direct you to a form where you will be able to configure up to 4 toggleable overlays. The URL's you can use for your images may be url's of images you host elsewhere, or you can reach out to me by any of the methods outlined at the bottom of this page, and I will by happy to host your images for you.
The toggle tip is the tip enu item, goal, or wheel prize, EXACTLY as it appears on your menu/wheel/etc. This is case sensitive. When this item is tipped for, or this prize won or milestone reached, the image will toggle from the on to off state, or vice versa

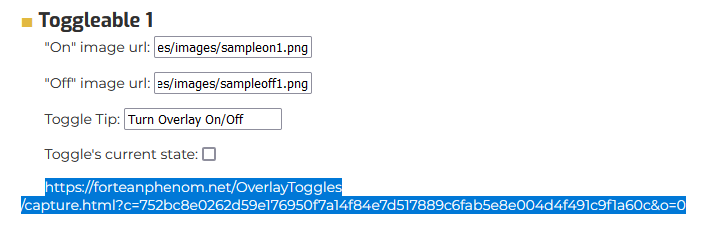

Begin by filling out the settings for the toggleable you plan to use. Leaving an image URL blank for either the "on" or "off" image will mean that no image appears and the overlay is fully transparent in that state.
Click "Submit" at the bottom of the setup page, and copy the URL provided.

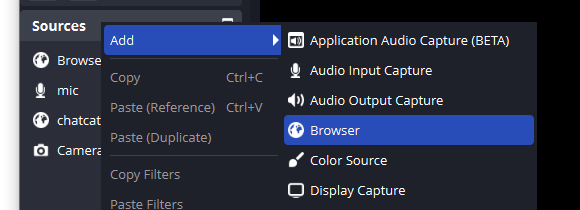

Add a Browser under the sources for your OBS scene.

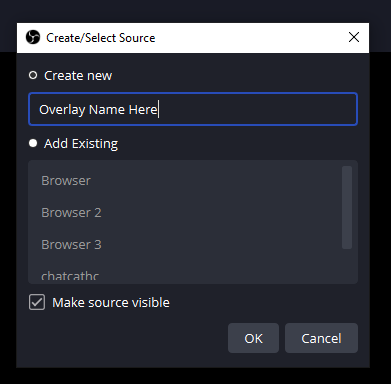

Name the browser whatever you would like.

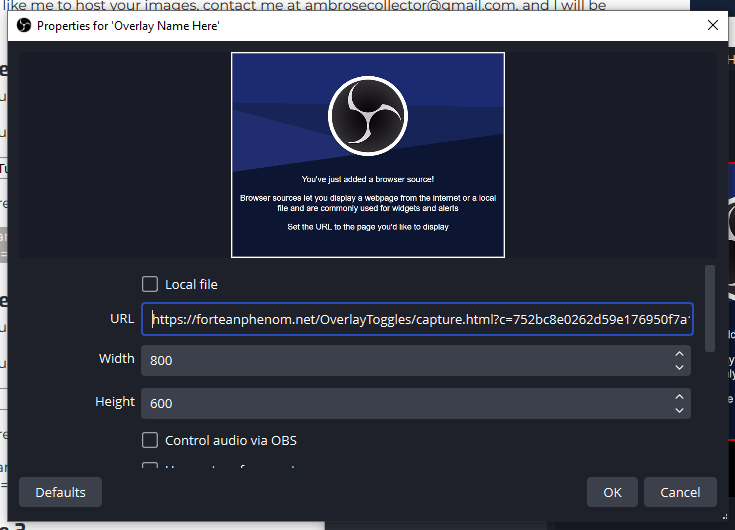

Paste the URL into the appropriate field, and click OK.
With that, your tip-toggled overlay is ready to use!
■ Making Changes
You, or any of your mods, can change your overlays at any point from publisher view by entering
!toggle all on
or
!toggle all off
In addition, if you access the configuration page with "!toggle config" or "!toggle c" as above, you can change any of the states of your toggleables to on or off. (Be sure to click "Submit" a the bottom of the page when you are done.)
